KE 50

P: up to 20 W
n: up to 10000 min-1
UV: 24 V — 220 V
M: up to 2.7 Ncm

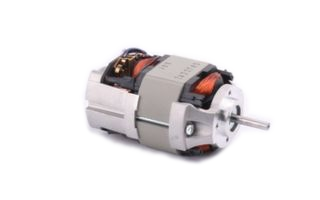

The KE series are skeleton-type DC-drives with revolving armatures. They can be designed as series (universal motor) or shunt motor. The series motor has a high starting torque, but its speed is heavily load-dependent. The speed of the shunt motor remains nearly constant and is controlled by the armature voltage. On request, motors can be foot-mounted or supplied with a different flange and/or drive-shaft diameter.

please contact us!

Data sheets:
